#include "frame_extraction.hpp"

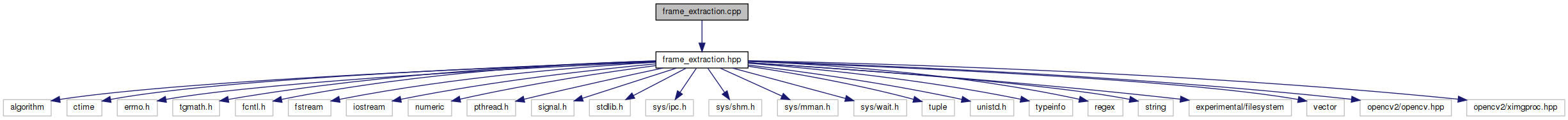

Include dependency graph for frame_extraction.cpp:

Functions
static Mat	shift_frame (Mat in_frame, int shiftx, int shifty)

static Mat	corner_matching (Mat in_frame, vector< Point > contour, int plusx, int plusy)

static vector< int >	test_edges (Mat in_frame, vector< Point > contour, int te_ret)

static int	min_square_dim (Mat in_frame)

static vector< int >	edge_width (vector< Point > contour)

static vector< int >	edge_height (vector< Point > contour)

static int	initial_crop (Mat in_frame, int framecnt)

static int	touching_edges (Mat in_frame, vector< Point > contour)

static Mat	traditional_centering (Mat in_frame, vector< vector< Point >> contours, int largest, Rect box)

static int	first_frame (Mat in_frame, int framecnt)

static int	halo_noise_and_center (Mat in_frame, int framecnt)

void	signal_callback_handler (int signum)

static Mat	apply_dynamic_mask (Mat in_frame, vector< Point > contour, int maskwidth)

static int	largest_contour (vector< vector< Point >> contours)

static vector< vector< Point > >	contours_only (Mat in_frame)

static int	box_finder (Mat in_frame, bool do_thresh)

static int	box_data (Rect box, int framecnt)

static int	show_usage (string name)

static vector< Point >	qhe_bigone (Mat in_frame)

static vector< vector< Point > >	quiet_halo_elim (vector< vector< Point >> contours, vector< Point > bigone)

int	tier_one (int framecnt, Mat in_frame, vector< Point > bigone)

int	tier_two (int framecnt, Mat in_frame, vector< Point > bigone)

int	tier_three (int framecnt, Mat in_frame, Mat old_frame, vector< Point > bigone)

int	tier_four (int framecnt, Mat in_frame, Mat old_frame, vector< Point > bigone)

int	parse_checklist (std::string name, std::string value)

static std::string	out_frame_gen (int framecnt)

std::string	space_space (std::string instring)

static int	edit_contours_for_crop ()

static int	get_max_ellipse_params ()

static int	generate_slideshow ()

static int	concat_tiers ()

static int	off_screen_ellipse ()

static int	post_processing ()

std::string	tail (std::string const &source, size_t const length)

int	main (int argc, char *argv[])

Function Documentation

◆ apply_dynamic_mask()

static Mat apply_dynamic_mask	(	Mat	in_frame,
		vector< Point >	contour,
		int	maskwidth
	)

static

This function masks out the edges of the input frame based on the contour. The maskwidth determines how much to mask out.

Parameters

in_frame	OpenCV matrix image, 16-bit single depth format
contour	OpenCV Point vectors of int-int point contour edges. Use the output from "bigone" here.
maskwidth

Returns: in_frame The modified in_frame from the input params

Definition at line 757 of file frame_extraction.cpp.

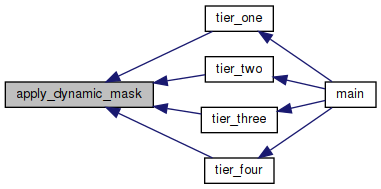

Here is the caller graph for this function:

◆ box_data()

static int box_data	(	Rect	box,
		int	framecnt
	)

static

Parameters

in_frame	OpenCV matrix image, 16-bit single depth format
framecnt	int of nth frame retrieved by program

Returns: status

Definition at line 845 of file frame_extraction.cpp.

Here is the caller graph for this function:

◆ box_finder()

static int box_finder	(	Mat	in_frame,
		bool	do_thresh
	)

static

This function finds the bounding box for the largest contour and reports on its properties. Stores OpenCV Rect object bounding the largest contour (presumably the moon) to global BF_BOX.

Parameters

in_frame OpenCV matrix image, 16-bit single depth format

Returns: status

Definition at line 808 of file frame_extraction.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ concat_tiers()

static int concat_tiers ( )

static

Concatenates the Tiered data files into a single file called mixed_tiers.csv This requires the linux sort function to run because sorting csv in C++ ab initio is painful

Returns: status

Definition at line 1774 of file frame_extraction.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ contours_only()

static vector<vector<Point> > contours_only ( Mat in_frame )

static

This function returns the contours from an image. It really only needs to exist because repeatedly declaring the unused hierarchy is tedious.

Parameters

in_frame OpenCV matrix image, 16-bit single depth format

Returns: vector of int-int OpenCV Point vectors for each contour detected in the in_frame

Definition at line 794 of file frame_extraction.cpp.

Here is the caller graph for this function:

◆ corner_matching()

static Mat corner_matching	(	Mat	in_frame,
		vector< Point >	contour,
		int	plusx,
		int	plusy
	)

static

If the moon cannot be centered properly using moment methods, this function is called. Here, the corner of the bounding box around the moon in the input frame is matched to the corners detected in the first frame. If the first frame of the video was centered properly, this will produce an output frame which deviates less from the intended centering function. This helps to reduce noise in when the contours are detected across all tiers. Corner matching is determined by comparison against the maximum allowable edge length declared by EDGETHRESH from settings.cfg. If this threshold is violated, corner matching will occur. Otherwise, traditional centering will occur.

Parameters

in_frame	OpenCV matrix image, 16-bit single depth format
contour	OpenCV contour, a vector of int int points
plusx	horizontal deviation of contour in pixels
plusy	vertical deviation of contour in pixels

Returns: in_frame The modified in_frame from the input params

Definition at line 101 of file frame_extraction.cpp.

Here is the call graph for this function:

◆ edge_height()

static vector<int> edge_height ( vector< Point > contour )

static

This function determines the length of the extreme left and right edges of the moon contour.

Parameters

contour OpenCV contour, a vector of int int points

Returns: local_vec integer vector of the left and right edge length of the moon

Definition at line 279 of file frame_extraction.cpp.

Here is the caller graph for this function:

◆ edge_width()

static vector<int> edge_width ( vector< Point > contour )

static

This function determines the length of the extreme top and bottom edges of the moon contour.

Parameters

contour OpenCV contour, a vector of int int points

Returns: local_vec integer vector of the top and bottom edge length of the moon

Definition at line 249 of file frame_extraction.cpp.

Here is the caller graph for this function:

◆ edit_contours_for_crop()

static int edit_contours_for_crop ( )

static

Definition at line 1539 of file frame_extraction.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ first_frame()

static int first_frame	(	Mat	in_frame,
		int	framecnt
	)

static

This function is a special case of the frame preparation steps. It outputs many of the initial values which are used later (globals that start with the ORIG_ template) and omits some of the masking steps not possible on the first frame.

Parameters

in_frame	OpenCV matrix image, 16-bit single depth format
framecnt	int of nth frame retrieved by program

Returns: in_frame The modified in_frame from the input params

Definition at line 490 of file frame_extraction.cpp.

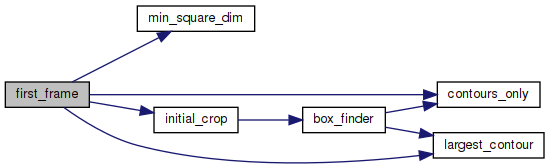

Here is the call graph for this function:

Here is the caller graph for this function:

◆ generate_slideshow()

static int generate_slideshow ( )

static

Definition at line 1705 of file frame_extraction.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ get_max_ellipse_params()

static int get_max_ellipse_params ( )

static

Determines the maximum width and height of the moon bounding box encountered in the video.

Returns: out_vec a vector of ints including the maximum width and height of the moon.

Definition at line 1652 of file frame_extraction.cpp.

Here is the caller graph for this function:

◆ halo_noise_and_center()

static int halo_noise_and_center	(	Mat	in_frame,
		int	framecnt
	)

static

This function finds the largest contour (presumably the edge of the moon) and attempts to center the cropped image based on the centroid of the contour. It calls corner_matching in cases where the centroid is not an appropriate method for centering. Data from this ellipse are stored in the ellipse.csv file. A small portion of the edge of the moon contour is removed to keep out the noisest portions. Stores modified in_frame to HNC_FRAME global

Parameters

in_frame	OpenCV matrix image, 16-bit single depth format
framecnt	int of nth frame retrieved by program

Returns: status

Definition at line 646 of file frame_extraction.cpp.

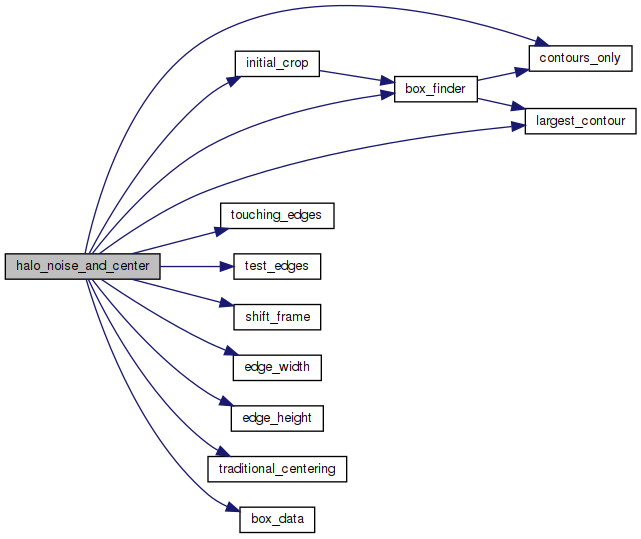

Here is the call graph for this function:

Here is the caller graph for this function:

◆ initial_crop()

static int initial_crop	(	Mat	in_frame,
		int	framecnt
	)

static

Performs an initial rough crop on the frame. This constructs a cropped frame which contains the largest contour, but does not necessarily center the contour within the frame. That is handled by halo_noise_and_center by determing whether the centering should use the corner_matching regime or simple centroid to centroid shifting. Stores the cropped in_frame to IC_FRAME global.

Parameters

in_frame	OpenCV matrix image, 16-bit single depth format
framecnt	int of nth frame retrieved by program

Returns: status

Definition at line 313 of file frame_extraction.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ largest_contour()

static int largest_contour ( vector< vector< Point >> contours )

static

This function returns the index of the largest contour in a list of contours so it can be accessed in future functions.

Parameters

contours vector of OpenCV vectors of int-int point contour edges

Returns: largest_contour_index integer index of the largest contour in a vector of contour vectors

Definition at line 771 of file frame_extraction.cpp.

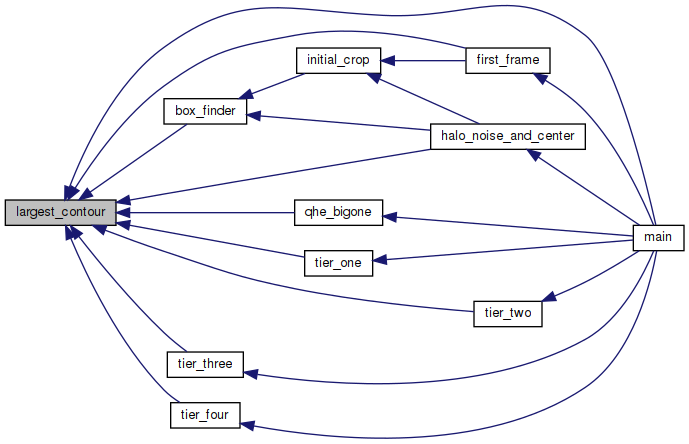

Here is the caller graph for this function:

◆ main()

int main	(	int	argc,
		char *	argv[]
	)

Main loop

Parameters

argc	number of input arguments
argv	contents of input arguments

Returns: status

Definition at line 2056 of file frame_extraction.cpp.

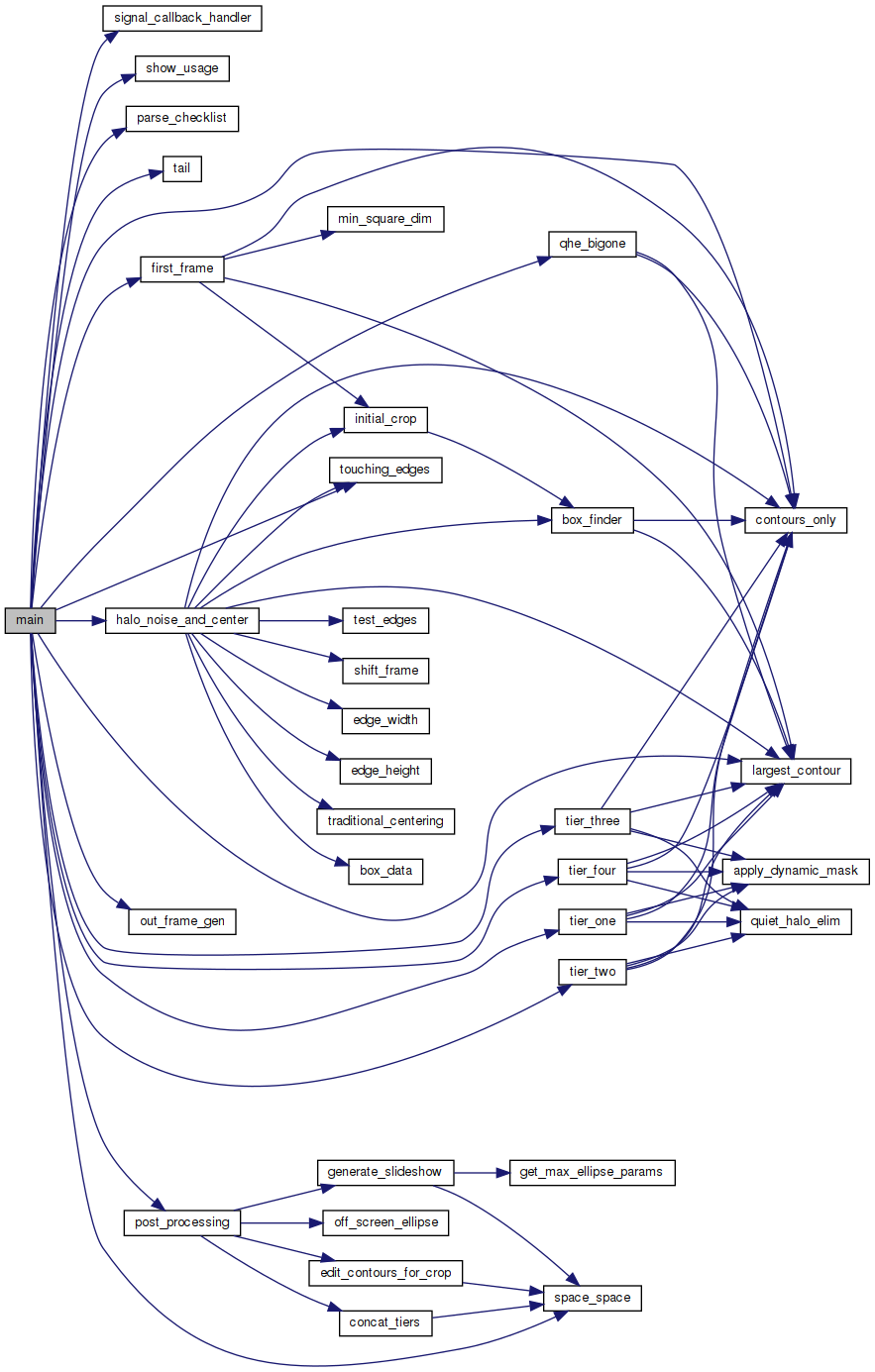

Here is the call graph for this function:

◆ min_square_dim()

static int min_square_dim ( Mat in_frame )

static

This function stores the BOXSIZE variable globally. BOXSIZE is the shortest side of the input image dimensions.

Parameters

in_frame OpenCV matrix image, 16-bit single depth format

Returns: status

Definition at line 233 of file frame_extraction.cpp.

Here is the caller graph for this function:

◆ off_screen_ellipse()

static int off_screen_ellipse ( )

static

Simplifies the ellipse.csv file to only report frames where the ellispe goes off screen. Creates a new file offscreen_moon.csv

Returns: status

Definition at line 1899 of file frame_extraction.cpp.

Here is the caller graph for this function:

◆ out_frame_gen()

static std::string out_frame_gen ( int framecnt )

static

This helper function assembles the output location for frames stored by the script.

Parameters

framecnt int of nth frame retrieved by program

Returns: outstring the constructed path string of where to store the nth frame

Definition at line 1513 of file frame_extraction.cpp.

Here is the caller graph for this function:

◆ parse_checklist()

int parse_checklist	(	std::string	name,
		std::string	value
	)

This function handles the strings and values parsed from the settings.cfg file and assigns them to the global values.

Parameters

name	String obtained while parsing the settings.cfg file
value	The value associated with name from settings.cfg file

Returns: status

Definition at line 1328 of file frame_extraction.cpp.

Here is the caller graph for this function:

◆ post_processing()

static int post_processing ( )

static

Holder function for processes which run after the bulk of main completes

Returns: status

Definition at line 1989 of file frame_extraction.cpp.

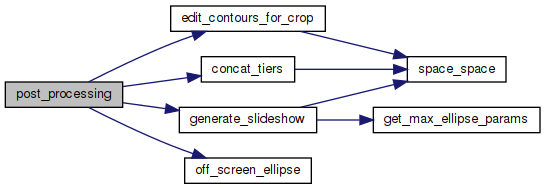

Here is the call graph for this function:

Here is the caller graph for this function:

◆ qhe_bigone()

static vector<Point> qhe_bigone ( Mat in_frame )

static

Finds the largest contour within the frame after masking. Called from main thread to prevent waste of CPU time for each tier.

Parameters

in_frame OpenCV matrix image, 16-bit single depth format

Returns: bigone vector of cv Points representing the largest frame in the image

Definition at line 891 of file frame_extraction.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ quiet_halo_elim()

static vector<vector<Point> > quiet_halo_elim	(	vector< vector< Point >>	contours,
		vector< Point >	bigone
	)

static

This function removes contours which are near to the edge of the moon halo. This is a quiet kind of masking which does not alter the image, rather it quietly makes contours in violation `disappear'. The distance from the moon edge which is to be masked is determined by QHE_WIDTH from settings.cfg.

Parameters

contours	vector of OpenCV vectors of int-int point contour edges
bigone	vector of Opencv Points representing the largest contour from qhe_bigone

Returns: out_contours vector of OpenCV int-int Point vectors representing valid contours

Definition at line 921 of file frame_extraction.cpp.

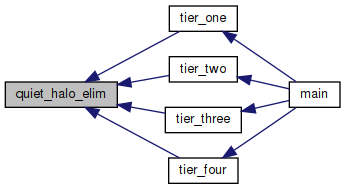

Here is the caller graph for this function:

◆ shift_frame()

static Mat shift_frame	(	Mat	in_frame,
		int	shiftx,
		int	shifty
	)

static

This function performs a shifting crop of the input image based on the values shiftx and shifty. The output image will always have BOXOUT dimensions determined from the size of the original image's shortest side.

Parameters

in_frame	OpenCV matrix image, 16-bit single depth format
shiftx	number of pixels the cropped image should be shifted in the horizontal direction
shifty	number of pixels the cropped image should be shifted in the vertical direction

Returns: in_frame The modified in_frame from the input params

Definition at line 38 of file frame_extraction.cpp.

Here is the caller graph for this function:

◆ show_usage()

static int show_usage ( string name )

static

This is a helper function called using -h in terminal.

Parameters

name

Returns: status

Definition at line 872 of file frame_extraction.cpp.

Here is the caller graph for this function:

◆ signal_callback_handler()

void signal_callback_handler ( int signum )

This is a helper function to handle terminal signals. This shuts down the various forks properly when an interrupt is caught.

Parameters

signum signal number passed to this function. Only handles 2.

Definition at line 738 of file frame_extraction.cpp.

Here is the caller graph for this function:

◆ space_space()

std::string space_space ( std::string instring )

This helper function handles spaces in user paths.

Parameters

instring the input string

Returns: outstring the corrected string

Definition at line 1526 of file frame_extraction.cpp.

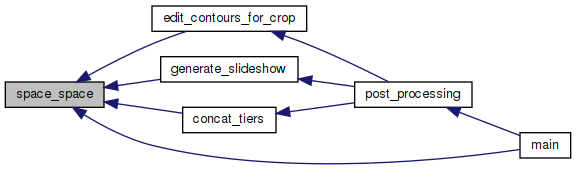

Here is the caller graph for this function:

◆ tail()

std::string tail	(	std::string const &	source,
		size_t const	length
	)

Get the last n characters of a string. Handles incorrectly sized searches.

Parameters

source	Input string
length	Number of characters from the back to return

Definition at line 2042 of file frame_extraction.cpp.

Here is the caller graph for this function:

◆ test_edges()

static vector<int> test_edges	(	Mat	in_frame,
		vector< Point >	contour,
		int	te_ret
	)

static

This function tests the moon contour to determine the degree of shift required to center it in a frame.

Parameters

in_frame	OpenCV matrix image, 16-bit single depth format
contour	OpenCV contour, a vector of int int points

Returns: outplus integer vector of horizontal and vertical deviation of the primary contour

Definition at line 177 of file frame_extraction.cpp.

Here is the caller graph for this function:

◆ tier_four()

int tier_four	(	int	framecnt,
		Mat	in_frame,
		Mat	old_frame,
		vector< Point >	bigone
	)

This is the fourth pass to detect valid contours in a frame. The parameters of the function are set in the T4 section of settings.cfg. This is the UnCanny method for detecting motion. The steps are essentially the backward operation of the steps taken during Canny filtering. The current frame is subtracted from the previous frame, and this output is threholded. The thresholded image is then passed through directional Sobel filters to separate the x and y components. These components are squared, added to each other, and square rooted. The output is rescaled to match the input value ranges, and a Gaussian blur is applied. Since this output is messy, the blurry image is processed using Zhang-Suen thinning to get distinct edges. Any details lost between the blurring and thinning steps reduce noise. Contours are then detected in the normal way.

Parameters

framecnt	int of nth frame retrieved by program
in_frame	OpenCV matrix image, 16-bit single depth format
old_frame	OpenCV matrix image, 16-bit single depth format, stored from previous cycle
bigone	vector of Opencv Points representing the largest contour from qhe_bigone

Returns: status

Definition at line 1229 of file frame_extraction.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ tier_one()

int tier_one	(	int	framecnt,
		Mat	in_frame,
		vector< Point >	bigone
	)

This is the first pass to detect valid contours in a frame. The parameters of the function are set in the T1 section of settings.cfg. Contours are detected based on a relatively strict OpenCV adaptiveThreshold function. These should be gauranteed "hits".

Parameters

framecnt	int of nth frame retrieved by program
in_frame	OpenCV matrix image, 16-bit single depth format
bigone	vector of Opencv Points representing the largest contour from qhe_bigone

Returns: status

Definition at line 964 of file frame_extraction.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ tier_three()

int tier_three	(	int	framecnt,
		Mat	in_frame,
		Mat	old_frame,
		vector< Point >	bigone
	)

This is the third pass to detect valid contours in a frame. The parameters of the function are set in the T3 section of settings.cfg. The detector performs an isotropic Laplacian on the current frame and the previous frame (settings.cfg can be modified for anisotropic Laplacian). The outputs are blurred and recombined. Values passing a cutoff threshold are retained and the contours are detected.

Parameters

framecnt	int of nth frame retrieved by program
in_frame	OpenCV matrix image, 16-bit single depth format
old_frame	OpenCV matrix image, 16-bit single depth format, stored from previous cycle
bigone	vector of Opencv Points representing the largest contour from qhe_bigone

Returns: status

Definition at line 1122 of file frame_extraction.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ tier_two()

int tier_two	(	int	framecnt,
		Mat	in_frame,
		vector< Point >	bigone
	)

This is the second pass to detect valid contours in a frame. The parameters of the function are set in the T2 section of settings.cfg. Contours are detected based on a relatively loose OpenCV adaptiveThreshold function.

Parameters

framecnt	int of nth frame retrieved by program
in_frame	OpenCV matrix image, 16-bit single depth format
bigone	vector of Opencv Points representing the largest contour from qhe_bigone

Returns: status

Definition at line 1042 of file frame_extraction.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ touching_edges()

static int touching_edges	(	Mat	in_frame,
		vector< Point >	contour
	)

static

This function tests the input contour boundaries against the boundaries of the frame. It returns a integer value representing the edge(s) which is/are touched by the contour. If no edges are touched, this function returns zero. A negative return value indicates error. Here is a table of potential return values:

-1 : error status
0 : no edge touching
1 : touching left edge only
2 : touching right edge only
3 : touching top and left edge
4 : touching bottom and left edge
5 : touching top and right edge
6 : touching bottom and right edge

Parameters

in_frame	OpenCV matrix image, 16-bit single depth format
contour	OpenCV contour, a vector of int int points

Returns: touching_status an integer value representing if and which edge of the frame is touched by the contour. Returns negative status values if something went wrong.

Definition at line 422 of file frame_extraction.cpp.

Here is the caller graph for this function:

◆ traditional_centering()

static Mat traditional_centering	(	Mat	in_frame,
		vector< vector< Point >>	contours,
		int	largest,
		Rect	box
	)

static

Definition at line 456 of file frame_extraction.cpp.

Here is the caller graph for this function:
